Images are for representational purposes only. Actual product may vary.
Cross Drilled
Red
1H4.6005A2
Black
1H4.6005A1
Silver
1H4.6005A3
TY1
Red
1H5.6005A2
Black
1H5.6005A1
Silver
1H5.6005A3
Product Overview
Product Description:

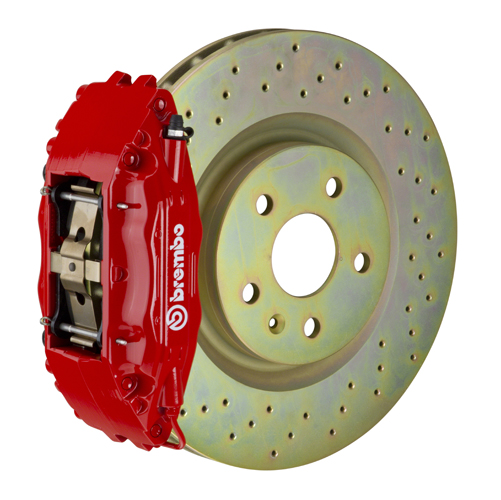

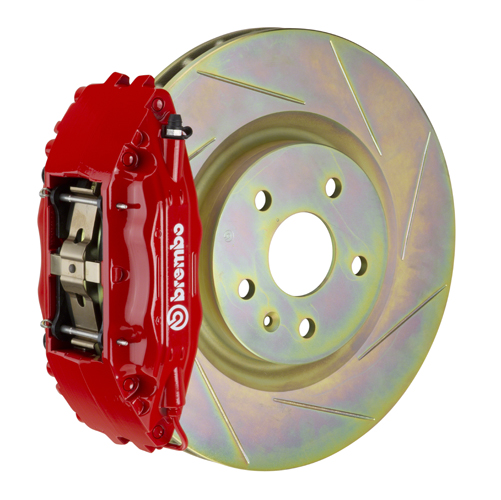

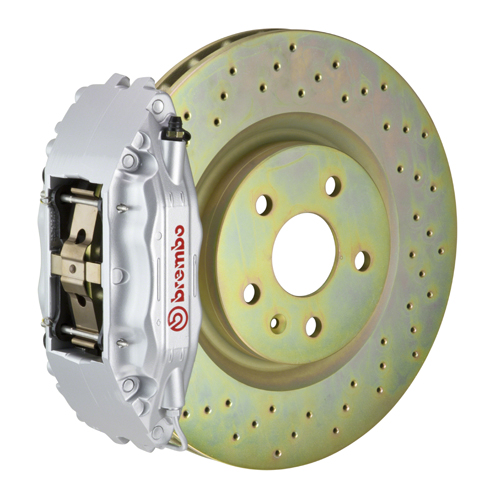

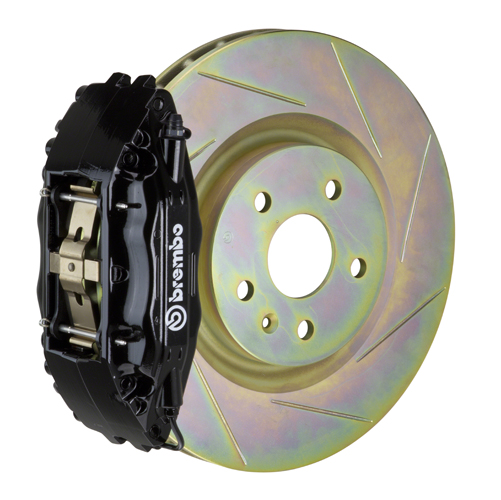

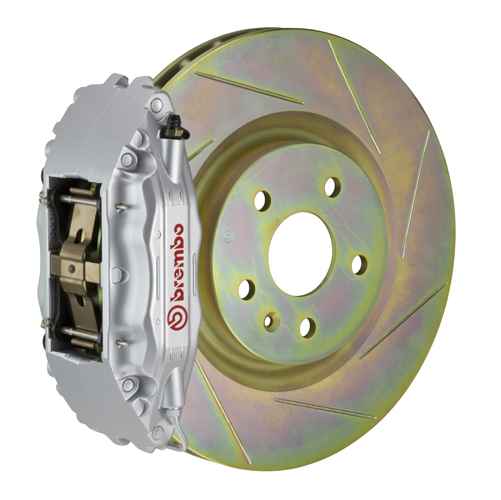

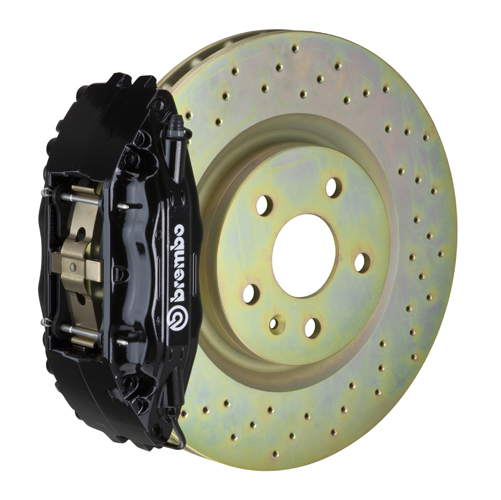

(F) 4-Piston Cast 2-Piece Calipers | 326x30mm (12.8") 1-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown:
Front
Intended Use:
Street Track Race
Caliper
Caliper Body:
Cast 2-Piece Radial Mount
Caliper Piston Configuration:
4-Piston
Caliper Piston Design And Insert Type:
Inner Pressure Seal / OEM Approved Dust Boot
Disc
Disc Material/Finish:
High Carbon / Corrosion Resistant Plating
Disc Width (Measurement):
30mm
Disc Air Gap (Measurement):
12mm
Disc Annulus (Measurement):
64mm
Disc Construction:
1-Piece Disc
Disc Vane Design (Measurement):
Vented Pillar Vane
Friction Material
Pad Volume / Surface Area:
72 | 77
Included Hardware
Brake Lines:
Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware:
Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
Brembo Sport EVO 500++ Brake Fluid
$6.95
Brembo Sport EVO 500++ works in a wide range of environments, suitable for everything from daily driving to intermediate track use.
Brembo LCF 600 Plus Brake Fluid
$23.99
Brembo LCF 600 Plus can handle high temperatures without loss of pedal feel (independently proven low compressibility). Compatible with all Brembo Racing Brake Systems.
Brembo HTC 64T Brake Fluid
$38.99
Brembo HTC 64T can handle high temperatures without loss of pedal feel (independently proven low compressibility) and has been specifically formulated to provide the highest performance and consistency under all racing conditions.
