Images are for representational purposes only. Actual product may vary.

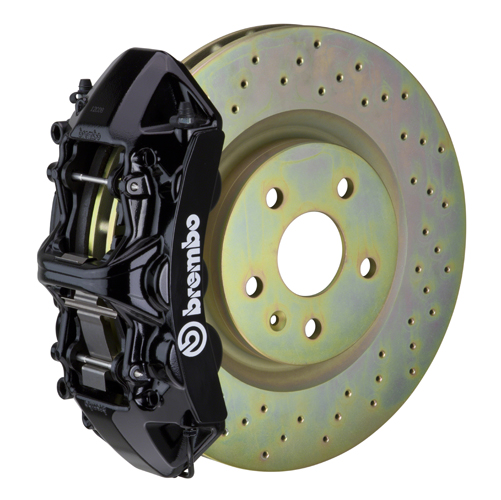

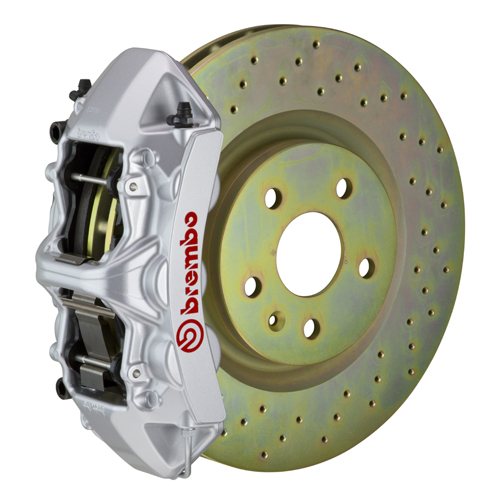

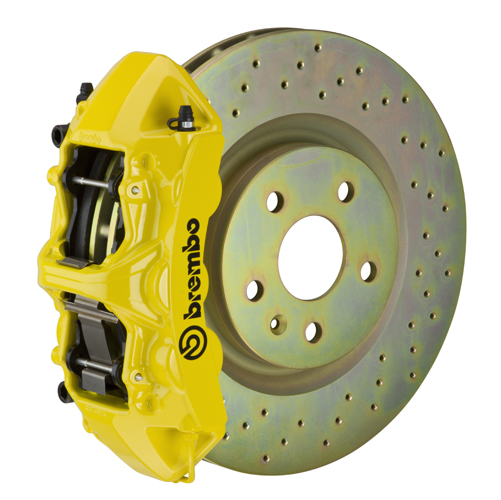

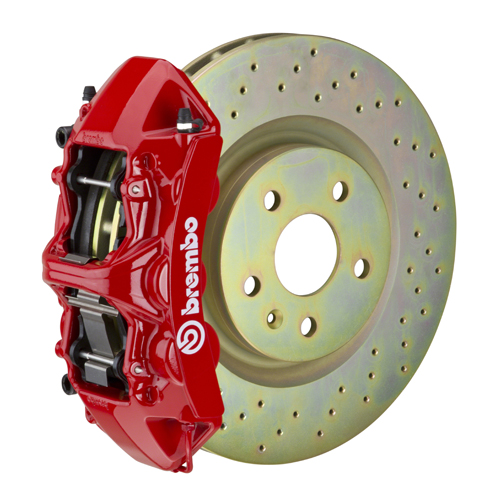

Cross Drilled
Red
1N4.8001A2
Black
1N4.8001A1
Silver
1N4.8001A3
Yellow
1N4.8001A5
TY1
Red
1N5.8001A2
Black
1N5.8001A1
Silver
1N5.8001A3
Yellow
1N5.8001A5
Product Overview
Product Description:

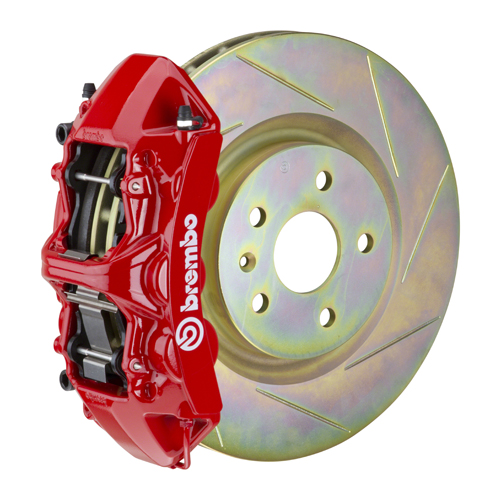

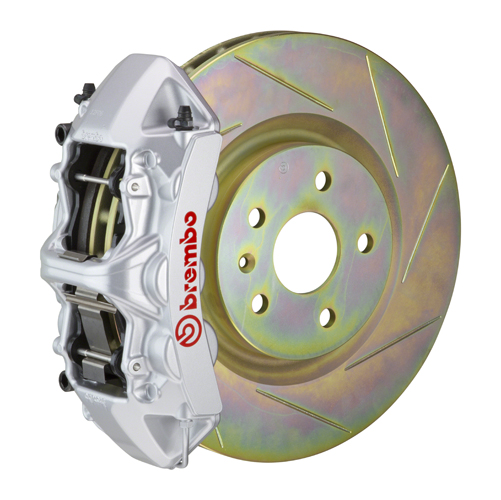

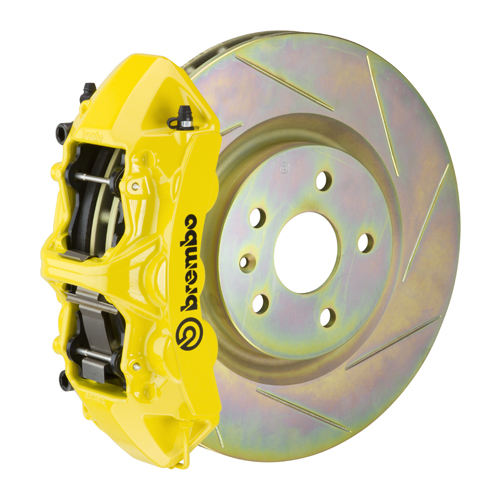

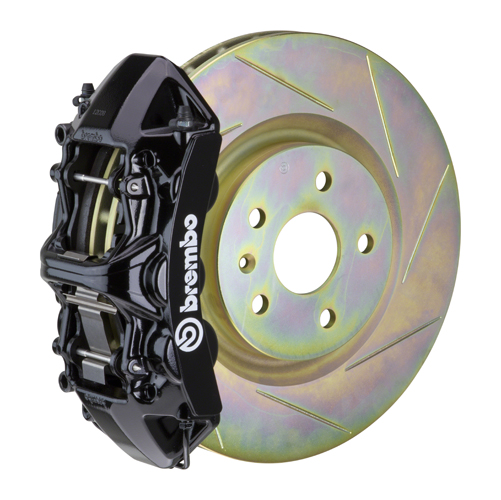

(F) 6-Piston Monobloc Calipers | 355x32mm (14") 1-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown:
Front
Intended Use:
Street Track Race
Caliper
Caliper Body:
Cast Monobloc Radial Mount
Caliper Piston Configuration:
6-Piston
Caliper Piston Design And Insert Type:
Inner Pressure Seal / OEM Approved Dust Boot
Disc
Disc Material/Finish:
High Carbon / Corrosion Resistant Plating
Disc Width (Measurement):
32mm
Disc Air Gap (Measurement):
16mm
Disc Annulus (Measurement):
64mm
Disc Construction:
1-Piece Disc
Disc Vane Design (Measurement):
Vented Pillar Vane
Disc To Hat Mounting System:
N/A
Friction Material
Pad Compound:
Brembo High Performance FM1000
Pad Volume / Surface Area:
107.3 | 95.4
Included Hardware
Brake Lines:
Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware:
Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
