Images are for representational purposes only. Actual product may vary.
Cross Drilled
Red
2P1.6007A2
Black
2P1.6007A1
Silver
2P1.6007A3
Yellow
2P1.6007A5
TY1
Red
2P2.6007A2
Black
2P2.6007A1
Silver
2P2.6007A3
Yellow
2P2.6007A5
Product Overview
Product Description:

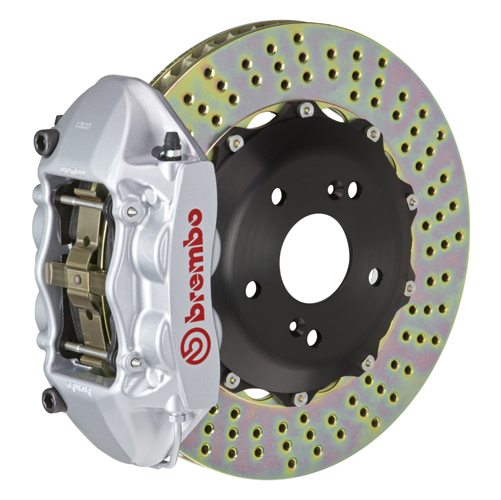

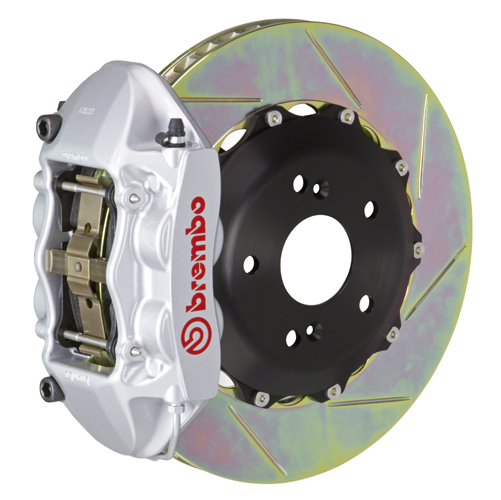

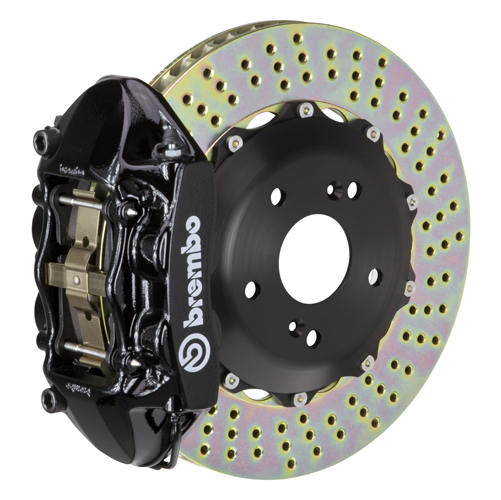

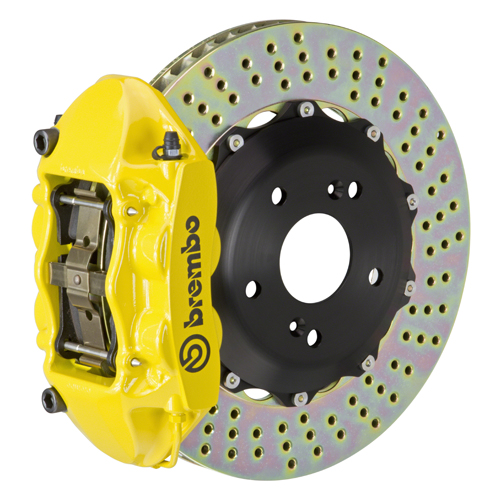

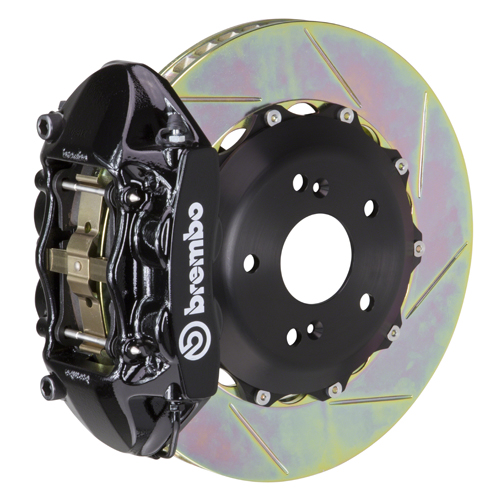

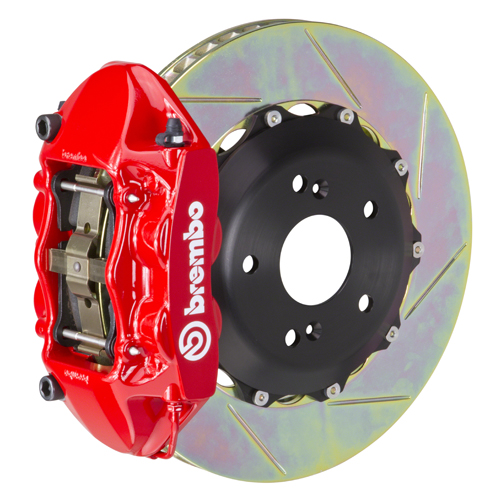

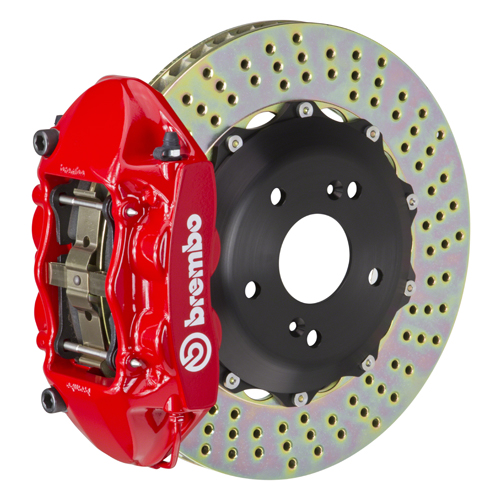

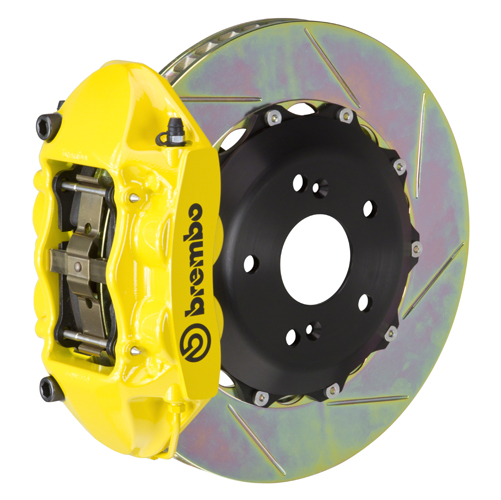

(R) 4-Piston Monobloc Calipers | 328x28mm (12.9") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown:
Rear
Intended Use:
Street Track Race
Notes:
Not for road use. This system eliminates the parking/emergency brake function
Caliper
Caliper Body:
Cast Monobloc Radial Mount
Caliper Piston Configuration:
4-Piston
Caliper Piston Design And Insert Type:
Inner Pressure Seal / OEM Approved Dust Boot
Disc
Disc Material/Finish:
Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Width (Measurement):
28mm
Disc Air Gap (Measurement):
17mm
Disc Annulus (Measurement):
54mm
Disc Construction:
2-Piece Disc Assembly
Disc Vane Design (Measurement):
Vented Curved 48 Vane
Disc To Hat Mounting System:
Floating D-Bobbin with Anti Rattle Spring
Friction Material
Pad Compound:
Brembo High Performance FM1000
Pad Volume / Surface Area:
76.4 | 62.1
Included Hardware
Brake Lines:
Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware:
Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
