Images are for representational purposes only. Actual product may vary.
TY3
Clear Hard Anodized
3K2.8006A
Product Overview
Product Description:

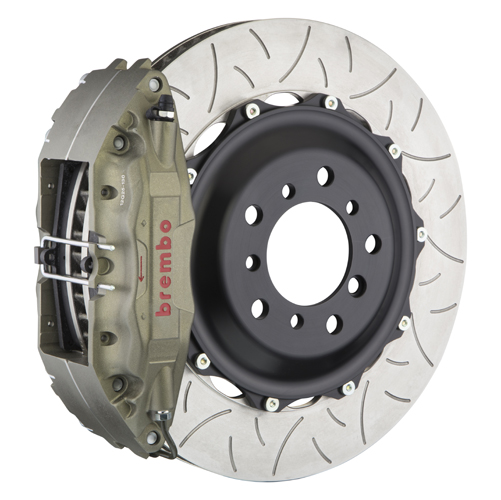

(F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown:
Front
Intended Use:
Street Track Race
Caliper
Caliper Body:
Cast 2-Piece Radial Mount
Caliper Piston Configuration:
4-Piston
Caliper Piston Design And Insert Type:
Inner Pressure Seal / Stainless Steel Insert
Disc
Disc Material/Finish:
Advanced High Carbon Alloy / Unplated
Disc Width (Measurement):
32mm
Disc Air Gap (Measurement):
17mm
Disc Annulus (Measurement):
53mm
Disc Construction:
2-Piece Disc Assembly
Disc Vane Design (Measurement):
Vented Curved 72 Vane
Disc To Hat Mounting System:
Floating D-Bobbin with Anti Rattle Spring
Friction Material
Pad Compound:
Proprietary Race Friction
Included Hardware
Brake Lines:
Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware:
Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
Brembo Sport EVO 500++ Brake Fluid
$6.95
Brembo Sport EVO 500++ works in a wide range of environments, suitable for everything from daily driving to intermediate track use.
Brembo LCF 600 Plus Brake Fluid
$23.99
Brembo LCF 600 Plus can handle high temperatures without loss of pedal feel (independently proven low compressibility). Compatible with all Brembo Racing Brake Systems.
Brembo HTC 64T Brake Fluid
$38.99
Brembo HTC 64T can handle high temperatures without loss of pedal feel (independently proven low compressibility) and has been specifically formulated to provide the highest performance and consistency under all racing conditions.
