TY5
Clear Hard Anodized
4KC.8010A
Product Overview
Product Description:

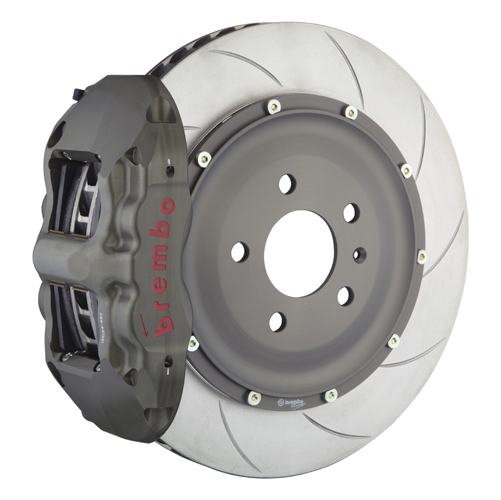

(R) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Front or Rear System Shown:
Rear
Intended Use:
Street Track Race
Caliper
Caliper Body:
Forged Monobloc
Caliper Piston Configuration:
4-Piston
Caliper Piston Design And Insert Type:
Inner Pressure Seal / Stainless Steel Insert
Disc
Disc Material/Finish:
Advanced High Carbon Alloy / Unplated
Disc Width (Measurement):
32mm
Disc Air Gap (Measurement):
20mm
Disc Annulus (Measurement):
53mm
Disc Construction:
2-Piece Disc Assembly
Disc Vane Design (Measurement):
Vented Curved 48 Vane
Disc To Hat Mounting System:
Floating D-Bobbin with Anti Rattle Spring
Friction Material
Pad Compound:
Proprietary Race Friction
Included Hardware
Brake Lines:
Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware:
Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
