GT-R-1N-.8010A (GT|R Systems)

Product Details

Images are for representational purposes only. Actual product may vary.

TY3

  • Nickel Plated
    1N3.8010AR
Product Overview
Product Description:

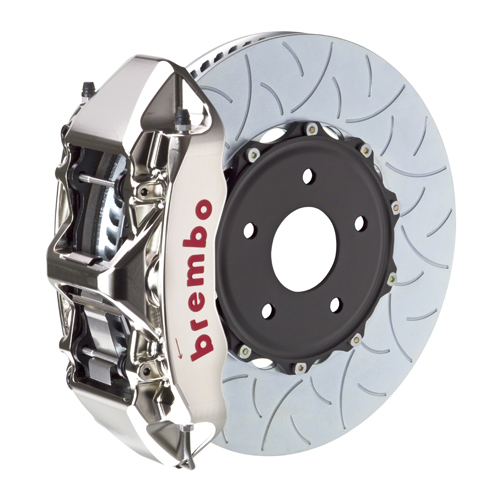

(F) 6-Piston Billet Monobloc Calipers | 350x34mm (13.8'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Front or Rear System Shown:
Front
Intended Use:
StreetTrackRace
System Dynamics:
Caliper
Caliper Body:
Billet Monobloc Radial Mount
Caliper Piston Configuration:
6-Piston
Caliper Piston Design And Insert Type:
Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert
Disc
Disc Type:
TY3
Disc Material/Finish:
Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter:
350mm
Disc Width (Measurement):
34mm
Disc Air Gap (Measurement):
17mm
Disc Annulus (Measurement):
60mm
Disc Construction:
2-Piece Disc Assembly
Disc Vane Design (Measurement):
Vented Curved 72 Vane
Disc To Hat Mounting System:
Floating D-Bobbin with Anti Rattle Spring
Friction Material
Pad Compound:
Brembo High Performance FM1000
Pad Volume / Surface Area:
107.3 | 95.4
Included Hardware
Brake Lines:
Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware:
Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
